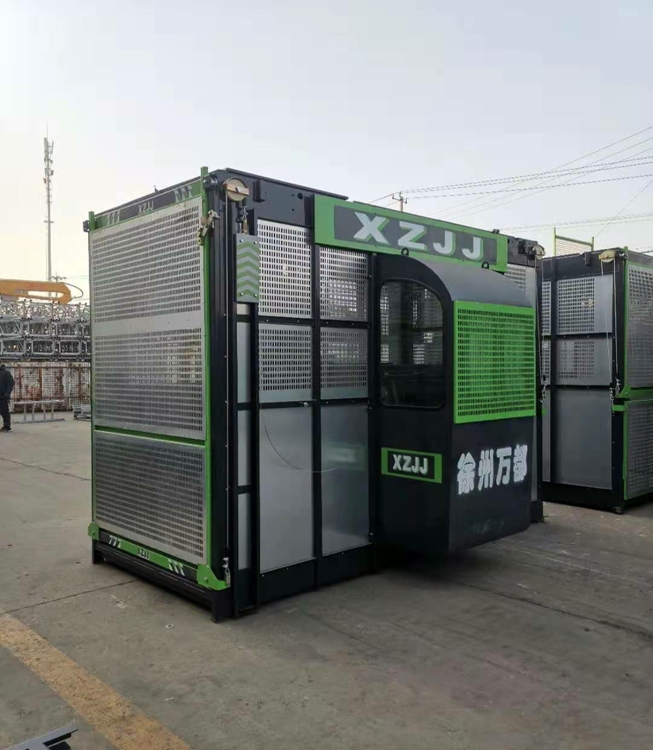

SC series construction elevator is driven by gears and racks. It is mainly used for the vertical transport of people and materials in highrise building projects. It can be conveniently installed and dismantled and its height can added during construction of the building.
The product consists of bottom cage (external cage), lift cage, guide rail bracket (standard section), wall shelf, driving mechanism, anti-falling safety device, safety control system, cable system, counterweight system, and derrick. There are single cage and twin cage elevator products. The single cage product can also be mounted with another cage and components to become a twin cage elevator. If it is mounted with counterweight device in the case that it originally has no counterweight and the motor power keeps unchanged, then its lifting capacity can be increased as the weight of the counterweight.
SC series construction elevator is mounted on the building through the wall shelf and guide rail bracket (standard section), the cage can move vertically on the guide rail with the driven of drive system. Featuring reliable electric and mechanical safety system, it is a safe and efficient lifting equipment for building construction.
| Technical data | Unit | SCD270/270 | SCD270/270BP | SCD270/270Z | SCD270/270G |
|---|---|---|---|---|---|
| Rated load | kg | 2*2700 | |||
| Rated erection load | kg | 2*1500 | |||
| Jid attachment rated load | kg | 250 | |||
| Cage size(L*W*H) | m | 3.2*1.5*2.5/3.6*1.5*2.5/3.8*1.5*2.5 | |||
| Maximum lifting height | m | 250 | 450 | ||
| Lifting speed | m/min | 33 | 0-40 | 0-63 | 0-96 |
| Rated output | kw | 2*2*15/2*3*11 | 2*3*18.5 | 2*3*18.5 | |
| Voltage rating | V | 380 | |||
| Rated frequency | Hz | 50 | |||
| Rated current | A | 2*2*32/2*3*23 | 2*3*39 | 2*3*39 | |
| Power supply fuses | A | 2*84/2*96 | 2*155 | 2*155 | |
| Protective class | / | IP55 | |||
| Load duration factor | / | FC-25% | |||
| Safety device | m/s | 1.2 | 1.4 | 2 | |
| Enclosure | kg | 1480/1680/1880 | |||
| Cage weight | kg | 1680/1980/2280 | |||
| Counterweight | kg | 1500/2000 | |||
| Mast section spec/Mast section weight | mm/kg | Ф89*4.5/199,Ф89*6/217, Ф89*8/239,Ф89*10/260,Ф89*12/280 | |||
| Mast section size | mm | 800*800*1508 | |||
* If you have special requirement on power, please state it when order the consignment.
* We can produce the cage and lengthen the tie-in according to the size the customer requested.
* We can heighten the erection height according to the customer's request.
* "/" means the item does not exist.
